Automatically generated fault trees from models
MADE can automatically generate fault trees directly from system models using response-path logic, eliminating manual diagramming and ensuring the structure reflects the underlying system design.
MADE Fault Tree Analysis
High-fidelity fault trees. Any workflow.
Model-based, manual, or hybrid Fault Tree Analysis — all with traceability, flexibility and certification-ready confidence.
MADE’s Fault Tree Analysis capability gives engineering teams the freedom to choose the workflow that best suits their project phase, system maturity and analysis objectives.
Whether rapidly constructing a manual FTA, generating a fully model-based FTA directly from the system architecture or Digital Risk Twin, or combining both approaches in a hybrid workflow, MADE adapts to the way engineers actually work.
Manual
Rapid FTA creation for early-phase, legacy or exploratory analysis.
Model-Based
Generate fault trees directly from the system model and Digital Risk Twin.
Hybrid
Start manually, then progressively connect to the model for traceability.
Failure to Understanding: MADE’s FTA
Find Out How – Download the MADE FTA Brochure
Click and see how MADE enables manual, model-based, or hybrid Fault Tree Analysis in one platform.
Flexible Fault Trees
One platform. Any workflow. Total confidence.
Traditional FTA tools produce static analyses disconnected from system design. MADE delivers a model-based Fault Tree Analysis engine directly integrated with system models and the Digital Risk Twin, ensuring fault trees can stay synchronised as the system evolves.
For added flexibility, engineers can also create or extend analyses manually without sacrificing traceability, speed or certification-grade confidence across the lifecycle.
Manual for speed. Model-based for precision. Hybrid for reality.
Fault Tree Analysis that adapts to the project.
For early-phase or legacy analyses, MADE enables rapid manual FTA creation with intelligent logic, fully upgradable into the model-based environment.
Intelligent gate logic
Automated tree generation
Always in sync with design
Dynamic visualisation
Full traceability
Certification-ready confidence
A new generation of Fault Tree Analysis.
MADE supports manual, model-based and hybrid FTA workflows, giving engineers flexibility at any system maturity level while keeping fault trees accurate, traceable and aligned as the system evolves.
1
Create manually
Rapidly construct fault trees during concept, early design or legacy analysis.
2
Generate from model
Automatically generate fault trees from the Digital Risk Twin using response path logic.
3
Synchronise and evolve
Maintain alignment between safety analysis, system architecture and design changes.Workflow 1
Model-Based Fault Tree Analysis
Generate fault trees that evolve with the system.
Automatically generate fault trees directly from the Digital Risk Twin using response path logic. As the system model evolves, fault trees update automatically, eliminating rework and preserving consistency across design changes.
Automatically generated fault trees from system models
End-to-end traceability across the system model
Auditable analysis artefacts
Model-driven failure probability calculation
Distributions, duty cycles and mode ratios

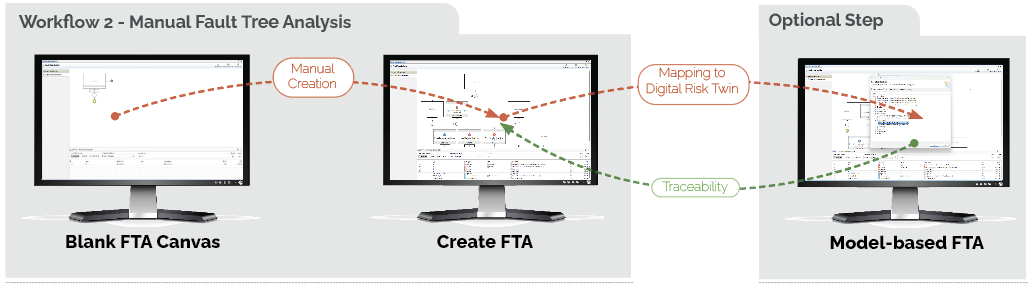

Workflow 2
Manual Fault Tree Analysis
Manual today. Model-based tomorrow.
Start from a blank FTA canvas to rapidly develop fault trees during early design or concept exploration. Manual trees can later be mapped to the Digital Risk Twin to establish traceability and maintain alignment with evolving system models.
Early-phase design
Rapid what-if analysis
Concept validation
Lifecycle support from design through sustainment
Why MADE FTA is Different
Traditional FTA software vs. MADE FTA.
MADE fundamentally changes how fault trees are created, maintained and used across the lifecycle.
Auto-updates when system designs change
As system designs evolve, MADE can update fault trees to remain consistent with the current model, reducing manual rework and supporting iterative development cycles.
Integrated model-based RAMS and Digital Risk Twin
Fault Tree Analysis in MADE is integrated with model-based RAMS assessments and the Digital Risk Twin, enabling traceability from top-level hazards to contributing failure events.
Importance and sensitivity measures
MADE includes built-in importance and sensitivity analysis capabilities that allow engineers to rank cut sets and failure contributors based on their impact.
Supports the full lifecycle
MADE supports Fault Tree Analysis from early design and verification through sustainment, maintaining continuity of safety insight as the system is fielded and maintained.
Model-based, manual and hybrid authoring
Teams can start with rapid manual authoring and progressively integrate fault trees with system models and the Digital Risk Twin without sacrificing traceability or automation.
What Users Say
Fault trees that work the way engineers work.
“MADE’s Fault Tree tool let us rapidly create FT manually and when ready we integrated our developed model. Very flexible functionality!”
— Lead Reliability Engineer, Defence OEM“MADE FTA combines manual flexibility with model-based rigor — without compromise.”
— Program Director, Defense ContractorBuild fault trees that keep pace with engineering change.
MADE enables manual, model-based and hybrid Fault Tree Analysis, giving teams the flexibility to move quickly while maintaining traceability, design alignment and confidence across the lifecycle.
